Product Overview

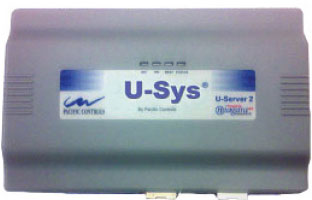

  • The U-Sys Server 2 is compact, DIN-rail mounting platforms and a framework for integration, control and web serving.
  • The U-Sys Server 2 includes Ethernet and serial communication ports as standard. The communication capability can be extended by adding plug-in cards into the 2 expansion slots with the unit.

Features

  • DIN rail mounting
  • 2xEthernet +1xRS232 and 1xRS485 ports
  • Optional plug-in cards for communication
  • Plug-in IO module provide up to 66 points
  • 24Vac or 230V PSU options
  • Supports Open Communication networks LON, Bacnet, EIB-IP, Modbus ,M-bus, SNMP, Z-wave
  • Full network management of LONworks devices
  • Built in Web server provides Graphical User Interface via Browser
  • Different versions match different types and sizes of application

Communications

  • 2 Ethernet Ports-10/100Mb
  • 1 RS 232 port
  • 1 RS 485 non-isolated port
  • Optional Communication cards
